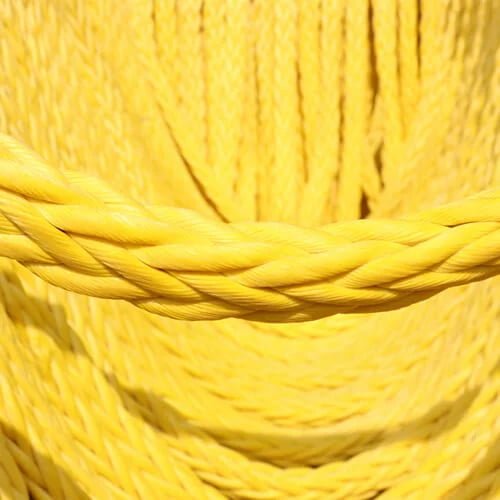

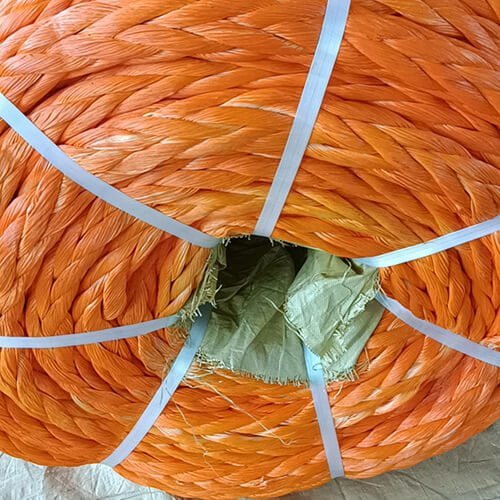

### Description of hmpe ropes
HMPE ropes are produced with ultra high molecular weight polyethylene (UHMWPE) fiber and advanced technology. Featuring high strength, low weight and low elongation, they have a long service life, and their operation is easy, fast and safe.
### Features
* **Stronger:** with a same diameter, the strength of hmpe ropes is comparable to that of wire rope.
* **Lower elongation: **their breaking elongation is close to that of wire rope.
* **Lighter: **with a same strength, their weight(g/m) is only 1/8 of wire rope.
* **Material:**UHMWPE
* **Structure:**12 strand
* **Density: **0.97g/cm3
* **Melting point:** 140℃
* **Elongation: **3.5%
* **Abrasion resistance:** excellent
* **UV resistance: **excellent
* **Chemical resistance:** good
* **Dry and wet conditions:** wet strength equals dry strength
* Non-rotating and anti-kinking, longer service life
* Easy to handle, inspect and repair
*
### Application
port towing, mooring system for ultra large container ships, Army\&Navy equipment, offshore, aerospace, sport equipment, electrical communications, large precision object sling, etc.
### Technical Data
HMPE Ropes
| Size | | Weight | | MBL（Unspliced) | | LDBF(Spliced) | |
| —— | ——– | —— | ——– | ————– | —– | ————- | —– |
| Dia.mm | Cir.inch | g/m | kgs/220m | kN | ton | kN | ton |
| 6 | 3/4 | 18 | 4 | 35 | 3.5 | 31 | 3.2 |
| 8 | 1 | 34 | 8 | 64 | 6.6 | 58 | 5.9 |
| 10 | 1-1/4 | 55 | 12 | 101 | 10.3 | 91 | 9.3 |
| 12 | 1-1/2 | 83 | 18 | 150 | 15.3 | 135 | 13.8 |
| 14 | 1-3/4 | 110 | 24 | 197 | 20.1 | 177 | 18.1 |
| 16 | 2 | 130 | 29 | 230 | 23.5 | 207 | 21.1 |
| 18 | 2-1/4 | 184 | 40 | 322 | 32.9 | 290 | 29.6 |
| 20 | 2-1/2 | 227 | 50 | 384 | 39.2 | 346 | 35.3 |
| 24 | 3 | 324 | 71 | 533 | 54.4 | 480 | 49 |
| 28 | 3-1/2 | 444 | 98 | 704 | 71.9 | 634 | 64.7 |
| 32 | 4 | 589 | 130 | 918 | 93.7 | 826 | 84.3 |
| 36 | 4-1/2 | 720 | 158 | 1104 | 112.7 | 994 | 101 |
| 40 | 5 | 880 | 194 | 1329 | 135.6 | 1196 | 122 |
| 42 | 5-1/4 | 979 | 215 | 1459 | 148.9 | 1313 | 134 |
| 44 | 5-1/2 | 1078 | 237 | 1589 | 162.1 | 1430 | 146 |
| 46 | 5-3/4 | 1171 | 258 | 1698 | 173.2 | 1528 | 155.9 |
| 48 | 6 | 1264 | 278 | 1807 | 184.4 | 1626 | 166 |
| 50 | 6-1/4 | 1388 | 305 | 1971 | 201.1 | 1774 | 181 |
| 52 | 6-1/2 | 1512 | 333 | 2136 | 217.9 | 1922 | 196.1 |
| 54 | 6-3/4 | 1636 | 360 | 2300 | 234.7 | 2070 | 211.2 |
| 56 | 7 | 1760 | 387 | 2464 | 251.5 | 2218 | 226 |
| 58 | 7-1/4 | 1885 | 415 | 2622 | 267.6 | 2360 | 240.8 |
| 60 | 7-1/2 | 2010 | 442 | 2778 | 283.4 | 2500 | 255.1 |
| 62 | 7-3/4 | 2135 | 470 | 2936 | 299.5 | 2642 | 269.6 |
| 64 | 8 | 2260 | 497 | 3092 | 315.5 | 2783 | 284 |
| 66 | 8-1/4 | 2423 | 533 | 3293 | 336.1 | 2964 | 302.5 |
| 68 | 8-1/2 | 2585 | 569 | 3496 | 356.7 | 3146 | 321 |
| 70 | 8-3/4 | 2748 | 605 | 3697 | 377.2 | 3327 | 339.5 |
| 72 | 9 | 2910 | 640 | 3898 | 397.7 | 3508 | 358 |
| 74 | 9-1/4 | 3065 | 674 | 4080 | 416.3 | 3672 | 374.7 |
| 76 | 9-1/2 | 3220 | 708 | 4263 | 435 | 3837 | 391.5 |
| 78 | 9-3/4 | 3375 | 743 | 4444 | 453.5 | 4000 | 408.2 |
| 80 | 10 | 3530 | 777 | 4628 | 472.2 | 4165 | 425 |
